- 5-Axis Vertical Milling Center
- Engineered for Complex-shaped Workpieces
- UNi5X-800
UNi5X-800
UNi5X-800
UNi5X-800

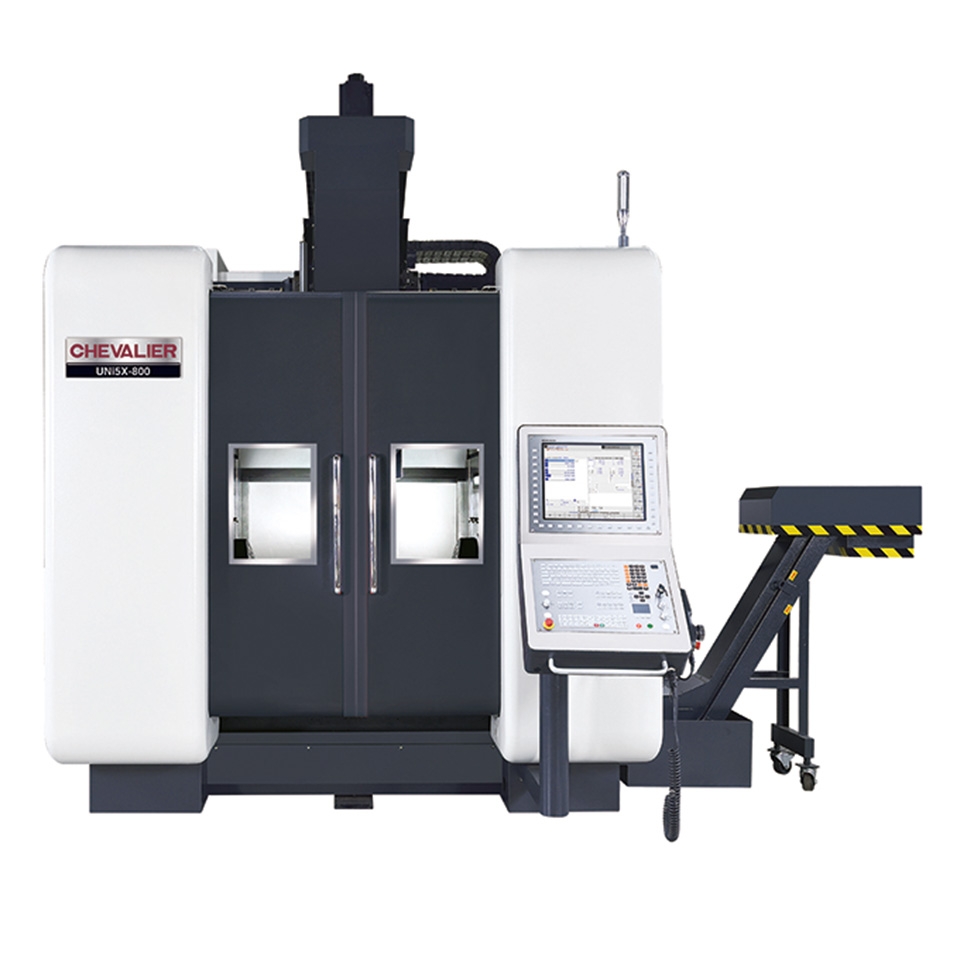

Product Introduction
The machines are shown with optional accessories.
| ITEM | Description | S.A.E. | Metric |
|---|---|---|---|
| Control | Heidenhain TNC640 19" LCD Control | – | – |
| Capacity | Max. Table diameter | Ø31.5" | Ø800mm |
| Max. table load | 2,866 lbs. | 1,300 kg | |
| Max. workpiece dimensions | Ø31.5" x H 23.6" | Ø800 x H 600 mm | |
| Travel | X / Y +travel for tool / Z-travel | 31.5" / 35.4" +5.9" / 25.6" | 800 / 900 + 150 / 650 mm |
| Feed rates | Rapid traverse (X/Y/Z) | 1,889 ipm | 48 m/min |
| Cutting feed rate | 590 ipm | 15 mm/min | |
| Rotary axis | A-axis - rotation | ± 120 | – |
| A-axis - speed | 80 rpm | – | |
| C-axis - rotation | 360° | – | |
| C-axis - speed | 100 rpm | – | |
| Spindle | Spindle type | Built-in | – |
| Spindle speed | 18,000 rpm | – | |
| Spindle motor (S1/S6 40%) | 34 HP / 47 HP | 25 / 35 kW | |
| Max. Spindle torque (S1/S6 40%) | 86 / 130 Nm | – | |
| Spindle taper | HSK-A63 | – | |
| ATC & tool magazine | Tool magazine type | Flate-type | – |
| Tool change mode | Pick-up type | – | |
| Tool storage capacity | 32 T | – | |
| Max. tool diameter with adjacent tool | 3" | Ø75 mm | |
| Max. tool diameter without adjacent tool | 5" | Ø125 mm | |
| Maximum tool length | 13.7" | 350 mm | |
| Maximum tool weight | 15.4 lbs. | 7 kg | |
| Machine dimensions | Floor space (W x D x H) | 220" x 102" x 141" | 5,600 x 2,600 x 3,600 mm |
| Net weight | 44,092 lbs. | 20,000 kg |
