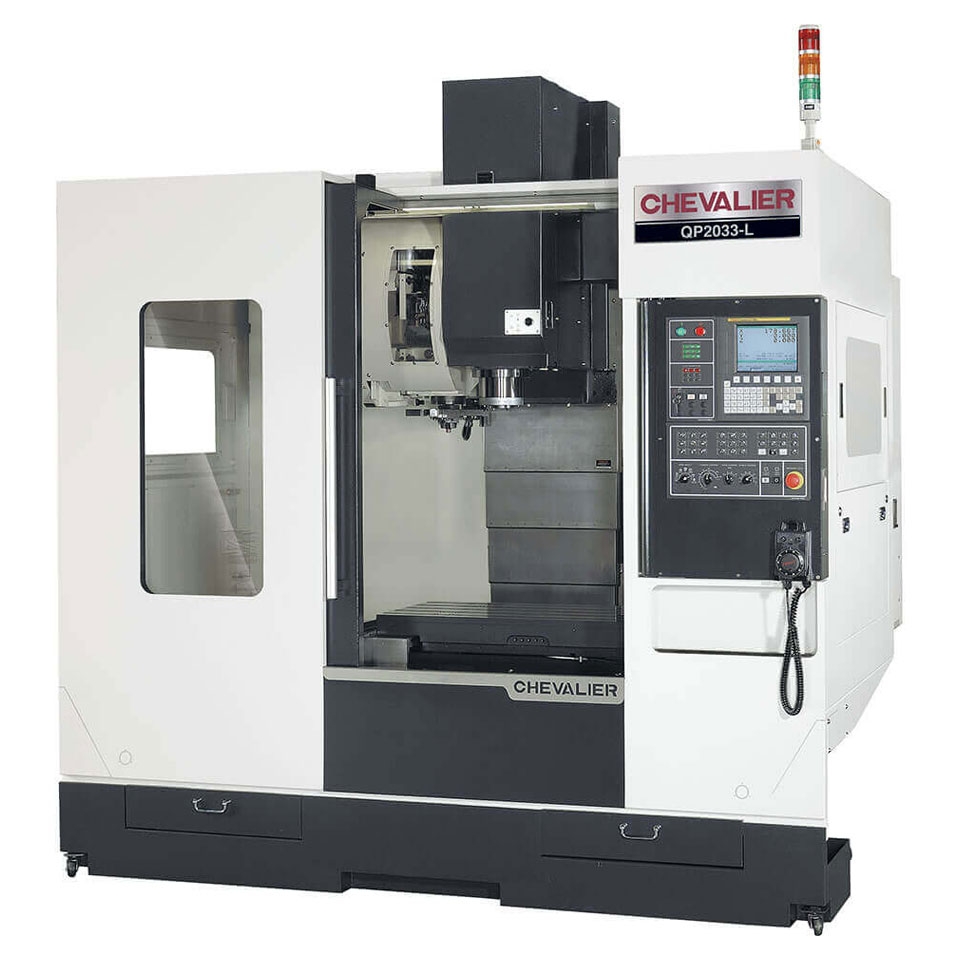

QP2033-L
QP2040-L High Speed VMC
QP2040-L
QP2560-L High Speed VMC
QP2560-L
Product Name : QP1620-L / 2033-L / 2040-L / 2440-L / 2560-L
Product Description
High Speed VMC
Inquiry
  • Designed for high precision, productivity, and high speed machining.
  • High-speed linear ways on all axes and the fastest linear movement is up to 1,891 ipm (48m/min).
  • High pressure coolant efficiently takes out chips and heat from deep-hole machining and greatly enhances tool cutting performance and longevity as well as parts accuracy.
  • Constructed with high-quality cast iron that offer best machine stability.
  • All linear axes are directly coupled with the ball screw and servo motor in order to reduce vibration and backlash.
ITEMDescriptionS.A.E.Metric
Control Fanuc 0i-M – –
Table Table size 27.6" x 12.6" 700 x 320 mm
Max. table load 550 lbs. 250 kg
Travel X / Y /Z travel 20.5" / 14.5" / 15.0" 520 / 368 / 380 mm
Spindle Spindle nose to table surface 5.9"~20.9" 150~530 mm
Spindle center to column 14.5" 368 mm
Spindle taper #40 Big Plus / #30 –
Spindle speed Belt drive: 100~10,000 rpm / Direct drive: 150~15,000 rpm –
Spindle diameter #40: 2.4" / #30: 2.0" #40: 60 mm / #30: 50 mm
Feed rates Rapid traverse (X / Y / Z) 1,889/1,889/1,417 ipm 48/48/36 m/min
Cutting feed (X / Y / Z) 39.3~393 ipm 1~10 m/min
Automatic tool changer Tool storage capacity 20+1 arm type –
Tool shank BT40 (Opt. CT40 or DIN40) / BT30 (Opt. CT30 / DIN30) –
Tool change time (tool-to-tool) 1 sec. –
Pull stud P40T-1 / P430T-1 –
Max. tool diameter with adjacent tool 3.1" Ø80 mm
Max. tool length 7.9" 200 mm
Max. tool weight 15.4 lbs. /  8.8 lbs. 7 kg / 4 kg
Machine dimensions Floor space (W x D x H) 66.1" x 116.1" x 96.3" 1,680 x 2,950 x 2,445 mm
Net weight 5,070 lbs. 2,300 kg
ITEMDescriptionS.A.E.Metric
Control Fanuc 0i-M – –
Table Table size 39.4" x 20.1" 1,000 x 510 mm
Max. table load 1,100 lbs. 500 kg
Travel X / Y /Z travel 33.5" / 20.9" / 20.1" 850 / 530 / 510 mm
Spindle Spindle nose to table surface 5.9"~26" 150~660 mm
Spindle center to column 23.0" 585 mm
Spindle taper #40 Big Plus –
Spindle speed Belt drive: 100~10,000 rpm / Direct drive: 120~12,000 rpm –
Spindle diameter 2.8" 70 mm
Feed rates Rapid traverse (X / Y / Z) 1,417/1,417/944 ipm) 36/36/24 m/min
Cutting feed (X / Y / Z) 39.3~393 ipm 1~10 m/min
Automatic tool changer Tool storage capacity 24+1 arm type –
Tool shank BT40 (Opt. CT40 or DIN40) –
Tool change time (tool-to-tool) 2 sec. –
Pull stud P40T-1 –
Max. tool diameter with adjacent tool 3.1" Ø80 mm
Max. tool length 11.8" 300 mm
Max. tool weight 15.4 lbs. 7 kg
Machine dimensions Floor space (W x D x H) 95.7" x 118.9" x 116.7" 2,430 x 3,020 x 2,963 mm
Net weight 12,700 lbs. 5,800 kg
ITEMDescriptionS.A.E.Metric
Control Fanuc 0i-M – –
Table Table size 47.2" x 20.1" 1,200 x 510 mm
Max. table load 1,320 lbs. 600 kg
Travel X / Y /Z travel 40.2" / 20.9" / 20.1" 1,020 / 530 / 510 mm
Spindle Spindle nose to table surface 5.1"~25.2" 130~640 mm
Spindle center to column 23.0" 585 mm
Spindle taper #40 Big Plus –
Spindle speed Belt drive: 100~10,000 rpm / Direct drive: 120~12,000 rpm –
Spindle diameter 2.8" 70 mm
Feed rates Rapid traverse (X / Y / Z) 1,417/1,417/944 ipm) 36/36/24 m/min
Cutting feed (X / Y / Z) 39.3~393 ipm 1~10 m/min
Automatic tool changer Tool storage capacity 24+1 arm type –
Tool shank BT40 (Opt. CT40 or DIN40) –
Tool change time (tool-to-tool) 2 sec. –
Pull stud P40T-1 –
Max. tool diameter with adjacent tool 3.1" Ø80 mm
Max. tool length 11.8" 300 mm
Max. tool weight 15.4 lbs. 7 kg
Machine dimensions Floor space (W x D x H) 110.2" x 118.9" x 116.7" 2,800 x 3,020 x 2,963 mm
Net weight 13,600 lbs. 6,200 kg
ITEMDescriptionS.A.E.Metric
Control Fanuc 0i-M – –
Table Table size 47.2" x 24.0" 1,200 x 610 mm
Max. table load 1,320 lbs. 600 kg
Travel X / Y /Z travel 40.2" / 24.0" / 21.7" 1,020 / 610 / 550 mm
Spindle Spindle nose to table surface 5.1"~26.8" 130~680 mm
Spindle center to column 27.0" 685 mm
Spindle taper #40 Big Plus –
Spindle speed Belt drive: 100~10,000 rpm / Direct drive: 120~12,000 rpm –
Spindle diameter 2.8" 70 mm
Feed rates Rapid traverse (X / Y / Z) 1,417/1,417/944 ipm 36/36/24 m/min
Cutting feed (X / Y / Z) 39.3~393 ipm 1~10 m/min
Automatic tool changer Tool storage capacity 24+1 arm type –
Tool shank BT40 (Opt. CT40 or DIN40) –
Tool change time (tool-to-tool) 2 sec. –
Pull stud P40T-1 –
Max. tool diameter with adjacent tool 3.1" Ø80 mm
Max. tool length 11.8" 300 mm
Max. tool weight 15.4 lbs. 7 kg
Machine dimensions Floor space (W x D x H) 110.2" x 123.2" x 120.0" 2,800 x 3,130 x 3,050 mm
Net weight 14,770 lbs. 6,700 kg
ITEMDescriptionS.A.E.Metric
Control Fanuc 0i-M – –
Table Table size 65.0" x 25.0" 1,650 x 635 mm
Max. table load 3,300 lbs. 1,500 kg
Travel X / Y /Z travel 60.0" / 25.0" / 25.0" 1,525 / 635 / 635 mm
Spindle Spindle nose to table surface 4.9"~29.9" 125~760 mm
Spindle center to column 27.0" 685 mm
Spindle taper #40 Big Plus –
Spindle speed Belt drive: 100~10,000 rpm / Direct drive: 120~12,000 rpm –
Spindle diameter 2.8" 70 mm
Feed rates Rapid traverse (X / Y / Z) 1,181/1,181/944 ipm 30/30/24 m/min
Cutting feed (X / Y / Z) 39.3~393 ipm 1~10 m/min
Automatic tool changer Tool storage capacity 24+1 arm type –
Tool shank BT40 (Opt. CT40 or DIN40) –
Tool change time (tool-to-tool) 2 sec. –
Pull stud P40T-1 –
Max. tool diameter with adjacent tool 3.1" Ø80 mm
Max. tool length 11.8" 300 mm
Max. tool weight 15.4 lbs. 7 kg
Machine dimensions Floor space (W x D x H) 172.0" x 143.1" x 129.1" 4,370 x 3,635 x 2,380 mm
Net weight 18,700 lbs. 8,500 kg
