FVM-22 / 26 / 34DCL Series

FVM-22DCL Series DCL Bridge Mill

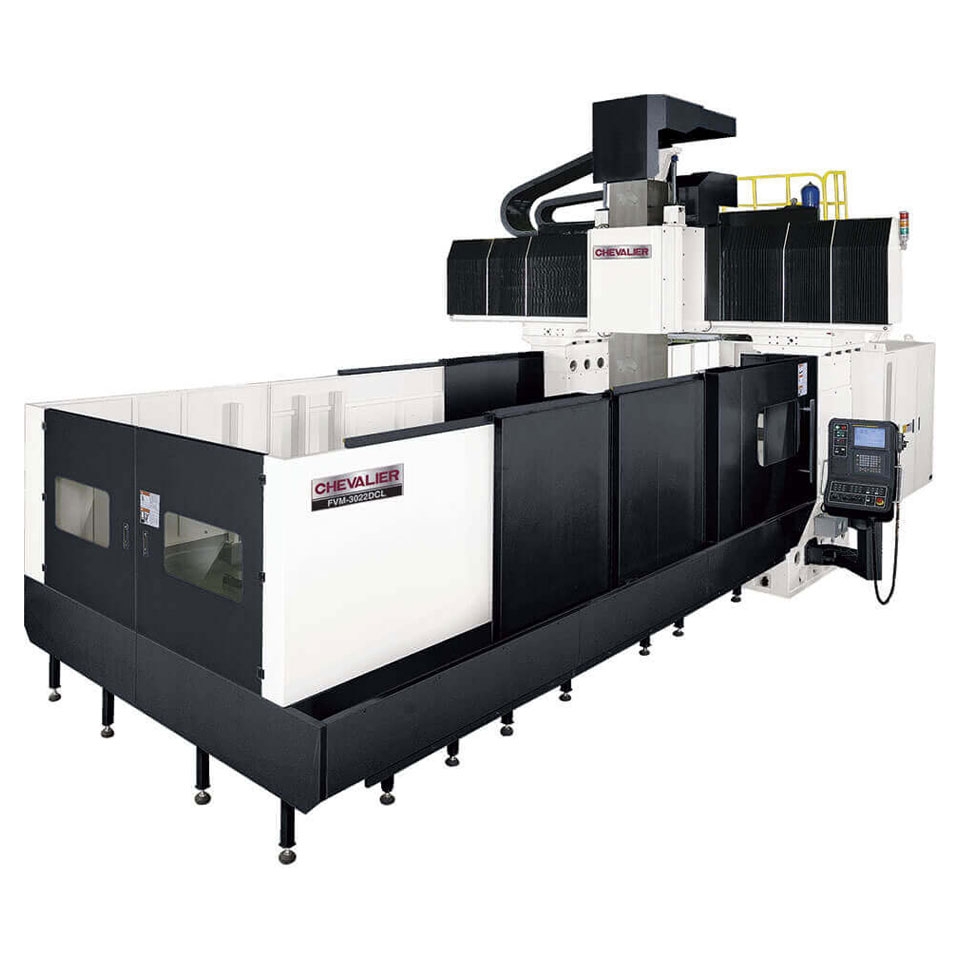

FVM-3022DCL
FVM-22DCL Series DCL Bridge Mill
FVM-3022DCL
Product Name : FVM-22 / 26 / 34DCL Series
Product Description
DCL Bridge Mill
Inquiry
  • The heavily ribbed cast-iron base with Meehanite® casting ensures the best rigidity and stability.
  • The big size column and box-type beam construction provide better support and damping.
  • The entire travel of the table is fully supported by two heavy-duty roller guideways of the X-axis, providing a better acceleration and preventing a stick-slip problem.
  • The 400 x 400mm RAM design on Z- axis gives the machine excellent support during the cutting process.
  • The spindle motor, ball screw and double counter-balancing cylinders are all properly located at the best positions to avoid unequal torque while ensuring the best structural accuracy.
  • A forced circulation cooling and lubrication system is applied to the spindle, bearing and gearbox to reduce thermal strain on the spindle and extend the life span.
  • Z-Axis with 400 x 400mm(16” x 16”) Box RAM Design
  • Table Size (W x L): up to 6,000 x 3,000mm (240" x 118")
  • Table Load: up to 22,000kg (44,000 lbs.)
  • Travel X / Y / Z : up to 6,000 x 3,400 x 1,000mm (240 x 133.8" x 39.3")
  • Spindle Speed: up to 6,000rpm / Optional 10,000rpm
  • Spindle Motor: up to 30HP (35HP Optional)
  • Spindle Taper: BT50 / CT50
  • Roller Guideway Design
  • Automatic Head Change (Optional)
  • Horizontal and Vertical Tool Change Magazine (Optional)
