- 5-Axis Vertical Milling Center
- Engineered for Complex-shaped Workpieces

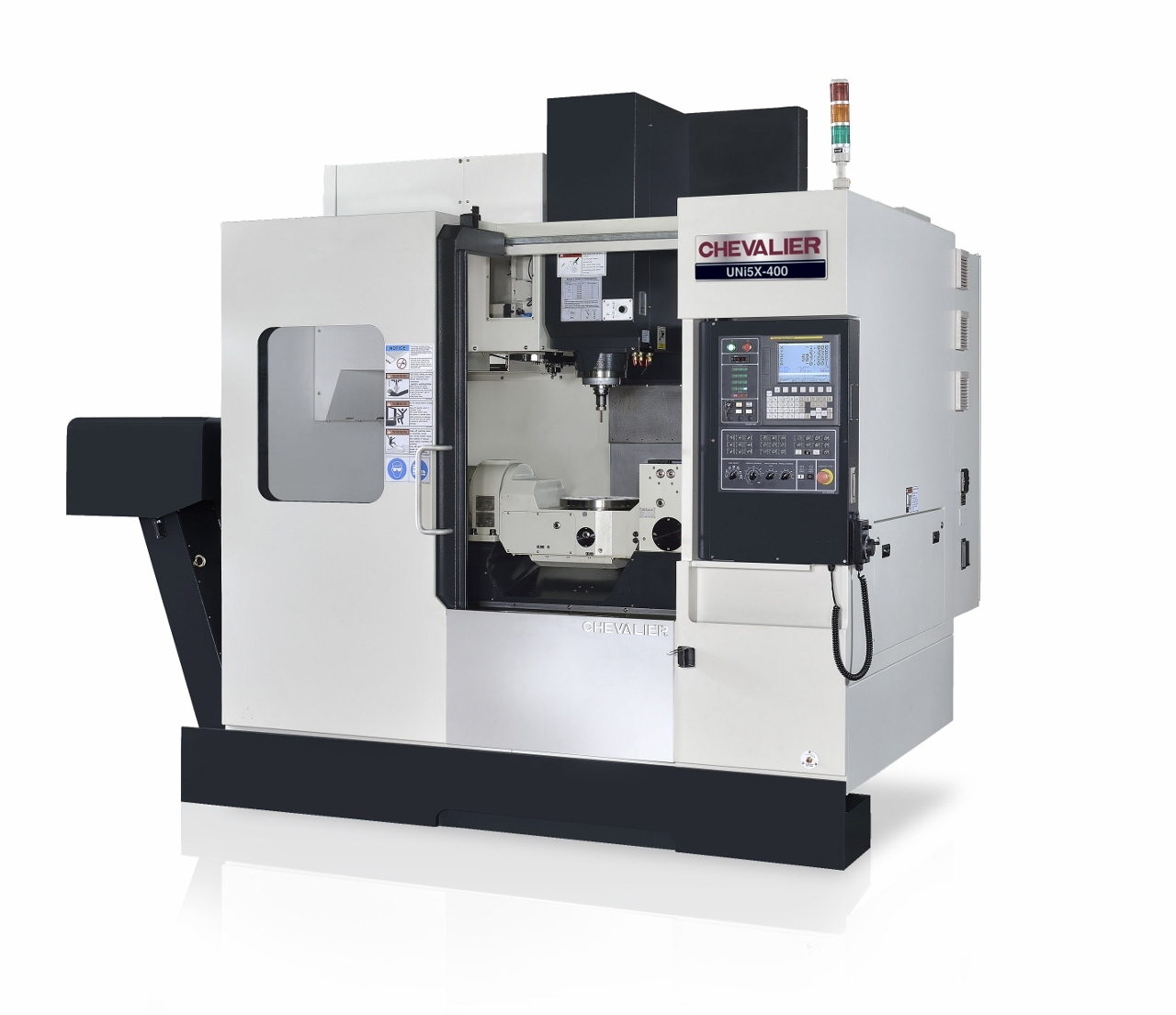

- UNi5X-400
UNi5X-400
UNi5X-400
UNi5X-400
- 5-Axis high speed VMC that offers better accuracy, more productivity, less manpower and higher profitability.
- A one piece inverted Y-shape column design offers superior rigidity and stability.
- The pre-tensioned Class C3 ball screws are used in all three axis.
- All servo motors are directly coupled to ball screws, increasing movement sensitivity while dramatically reducing backlash.
- A large-diameter BBT spindle design uses four-piece of P4 Class and high-precision angular-contact ball bearings to increase spindle rigidity and loading capability and to maintain high accuracy during high-speed machining.
| ITEM | Description | S.A.E. | Metric |
|---|---|---|---|
| Control | Fanuc 0i-MF | – | – |
| Fanuc 31i - Optional | – | – | |
| Capacity | Table size | Ø12.6" | Ø320 mm |
| Workpiece dimensions | Ø15.7" x H13.7" | Ø400 x H350 mm | |
| Max. table load | 220 lbs. | 100 kg | |
| Travel | X / Y / Z-travel | 29.5" / 24" / 21.7" | 750 / 610 / 550 mm |
| Feed rates | Rapid traverse (X/Y/Z) | 1,417 / 1,417 / 1,181 ipm | 36,000 / 36,000 / 30,000 mm/min |
| Cutting feed (X/Y/Z) | 394 / 394 / 394 ipm | 10,000 / 10,000 / 10,000 mm/min | |
| Accuracy | VDI 3441 positioning accuracy (X/Y/Z) | 0.0004" | 0.010 mm |
| VDI 3441 repeatability accuracy (X/Y/Z) | 0.0003" | 0.007 mm | |
| A-axis positioning | 12 sec. | – | |
| C-axis positioning (while with optional angle encoder) | 20 (12) sec. | – | |
| A-axis repeatability | 5 sec. | – | |
| C-axis repeatability (while with optional angle encoder) | 10 (4) sec. | – | |
| A/C-axis | A-axis (tilting) | 150° (+30° / -120°) | – |
| C-axis (rotating) | 360° | – | |
| A/C-axis rotation per min. | 25 rpm | – | |
| Spindle | Spindle taper | CT40 | – |
| Spindle power | (F) 11/15 kW, (S) 11 kW, (H) 10 kW | – | |
| Spindle speed | Direct drive 12,000 rpm (opt. 15,000 rpm) | – | |
| Pull stud | P40T-1 | – | |
| Spindle center to column | 27" | 685 mm | |
| Spindle nose to table surface | 0.8" ~ 22.4" | 20-570 mm | |
| Automatic tool changer | Tool storage capacity | 30+1 arm type ATC | – |
| Max. tool diameter with adjacent tool | 3" | 76 mm | |
| Max. tool diameter without adjacent tool | 5.9" | 150 mm | |
| Maximum tool length | 11.8" | 300 mm | |
| Maximum tool weight | 15.4 lbs. | 7 kg | |
| Machine dimensions | Floor space (W x D x H) | 96.5" x 90" x 124" | 2,450 x 2,287 x 3,150 mm |
| Net weight | 15,510 lbs. | 7,050 kg |
